SSIS: ForEach Loop Container

Performing complex, iterative actions.

In this example, I’ll illustrate how integrate iterative actions into a package.
This package will iterate through text files and display the name of each to the user.

As I explained in my Overview of Variables article, I’ll begin by adding an new Package Level variable and naming it Filename.

Next, I’ll drag a ForEach Loop Container Control Flow item unto the designer and configure it to loop through text files in my source folder.

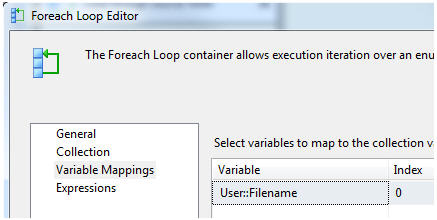

For its Variable Mappings, I’ll select the Package-level variable I added in the first step.

2-ForEachLoop

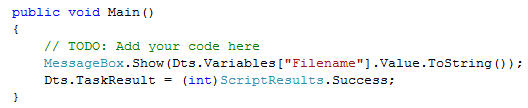

Now I’ll drag a Script Task into the ForEach Loop Container configure its ReadOnlyVariables to use the package-level variable.

I’ll program the script to display the name of each file in my sources folder.

4-ForEachLoop

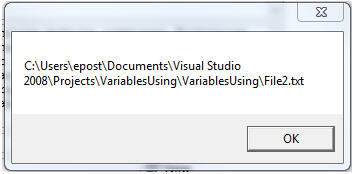

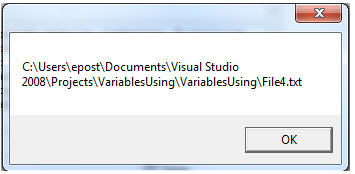

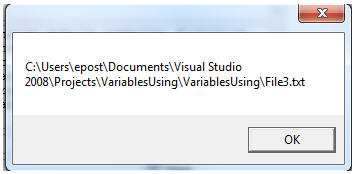

By executing my package, each file found in my source folder is displayed to me in a pop up window.

5-ForEachLoop

6-ForEachLoop

7-ForEachLoop

8-ForEachLoop

9-ForEachLoop
